MapAnything: Universal Feed-Forward Metric
3D Reconstruction

Nikhil Keetha^1,2    Norman Müller¹    Johannes Schönberger¹    Lorenzo Porzi¹    Yuchen Zhang²
Tobias Fischer¹    Arno Knapitsch¹    Duncan Zauss¹    Ethan Weber¹    Nelson Antunes¹
Jonathon Luiten¹    Manuel Lopez-Antequera¹    Samuel Rota Bulò¹    Christian Richardt¹
Deva Ramanan²    Sebastian Scherer²    Peter Kontschieder<sup>1

1</sup> Meta    ² Carnegie Mellon University

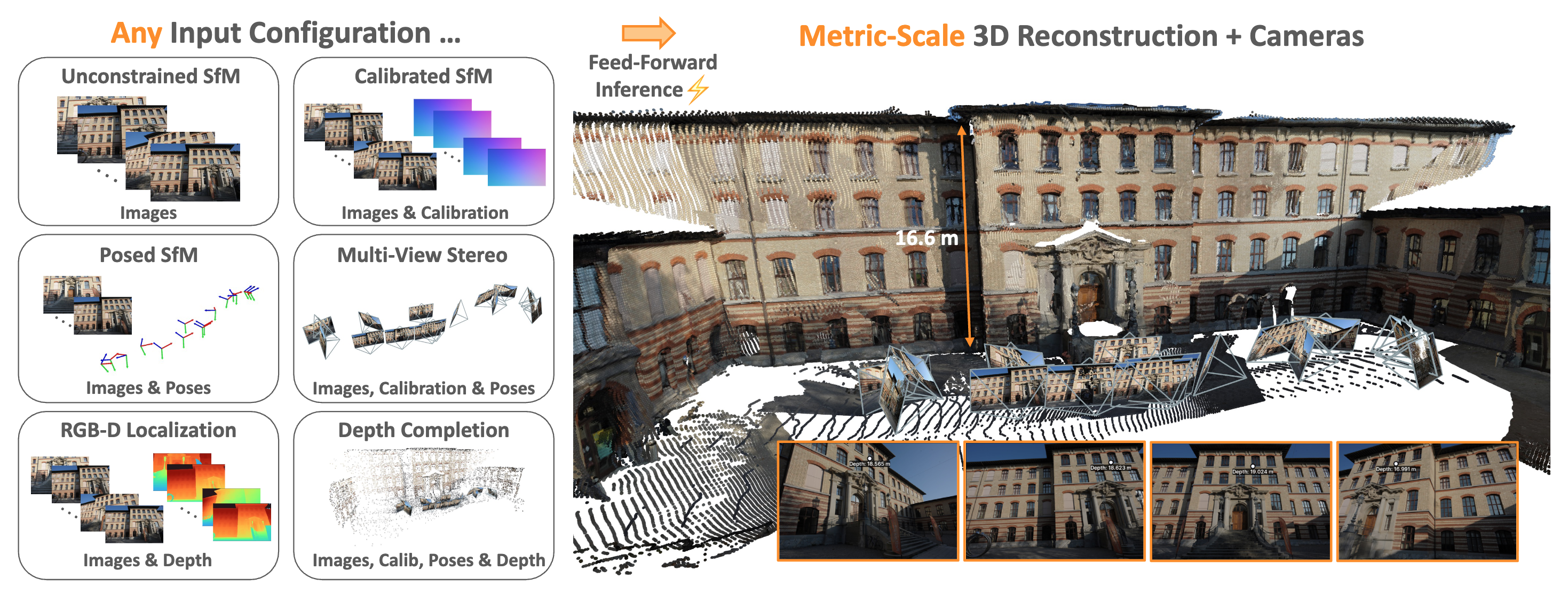

Overview

MapAnything is an open-source research framework for universal metric 3D reconstruction. At its core is a simple, end-to-end trained transformer model that directly regresses the factored metric 3D geometry of a scene given various types of inputs (images, calibration, poses, or depth). A single feed-forward model supports over 12 different 3D reconstruction tasks including multi-image sfm, multi-view stereo, monocular metric depth estimation, registration, depth completion and more.

The framework provides the complete stack—data processing, training, inference, and profiling—with a modular design that allows different 3D reconstruction models (VGGT, DUSt3R, MASt3R, MUSt3R, Pi3-X, and more) to be used interchangeably through a unified interface.

Table of Contents

• Overview
• Quick Start
  • Installation
  • Image-Only Inference
  • Multi-Modal Inference
  • Running External Models
    • Available Models
    • Installation
    • Quick Start Example
    • Running Inference
    • Unified Output Format
    • Notes on Input Requirements
• Interactive Demos
  • Online Demo

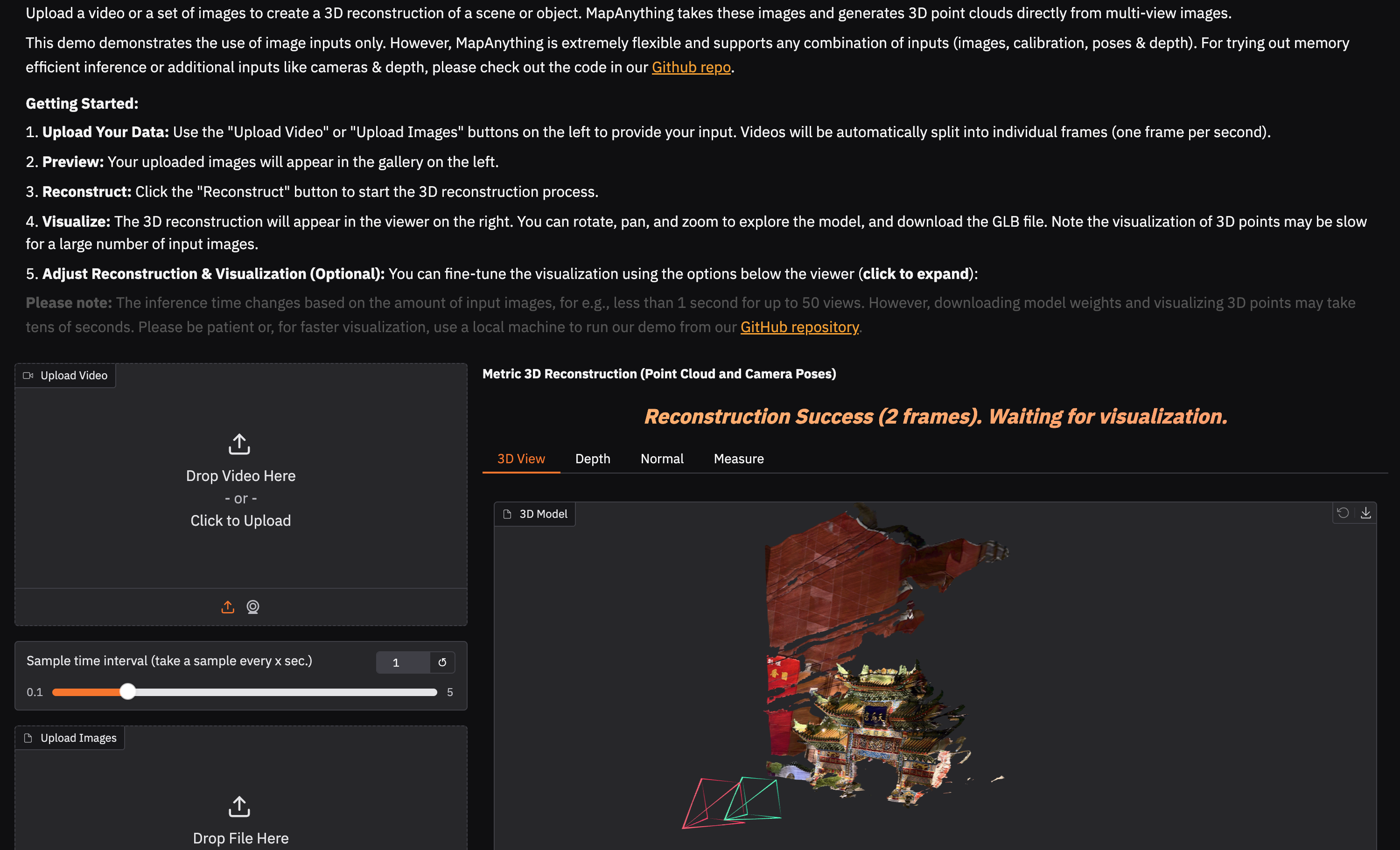

  • Local Gradio Demo
  • Rerun Demo
  • Demo Inference on COLMAP outputs
• Profiling

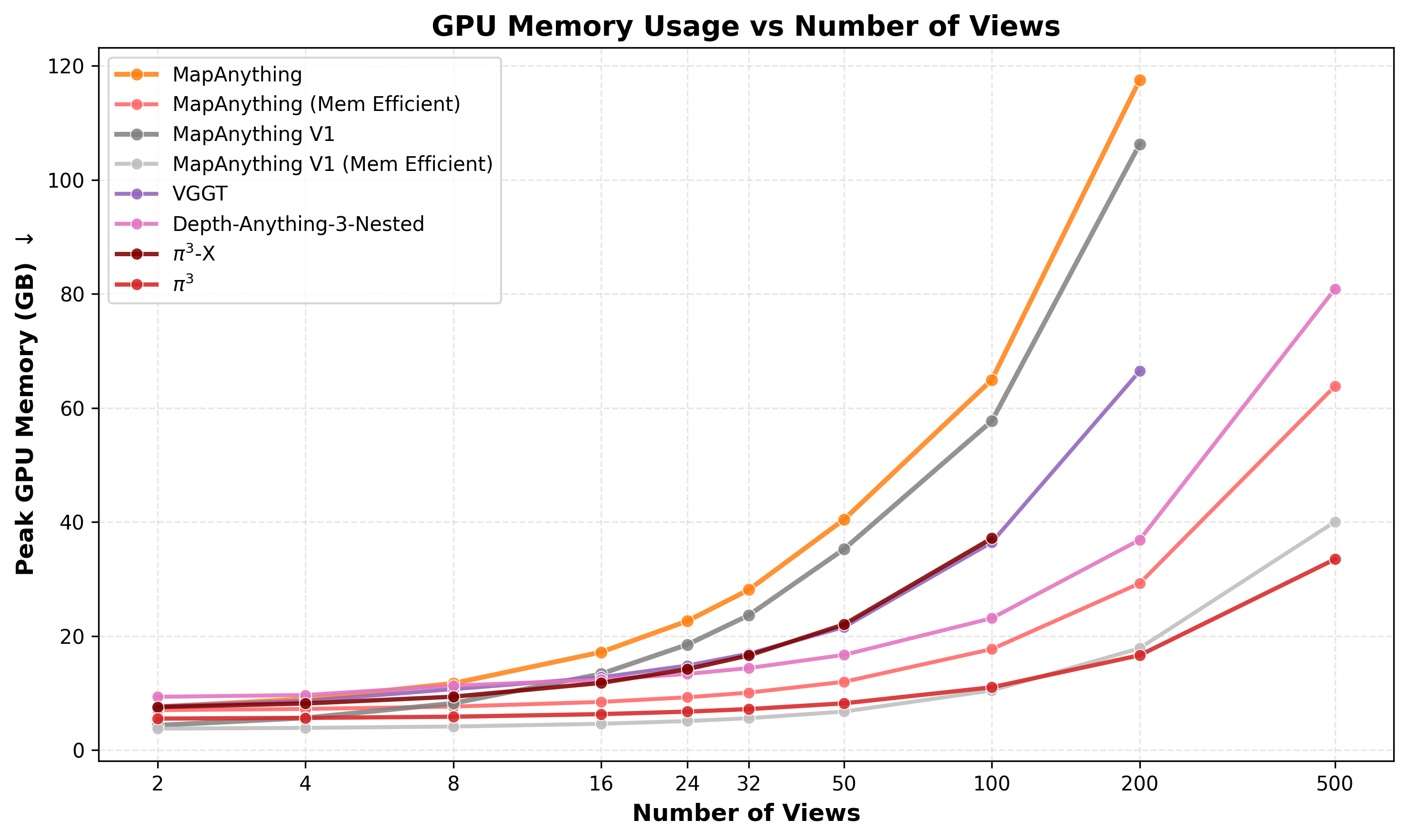

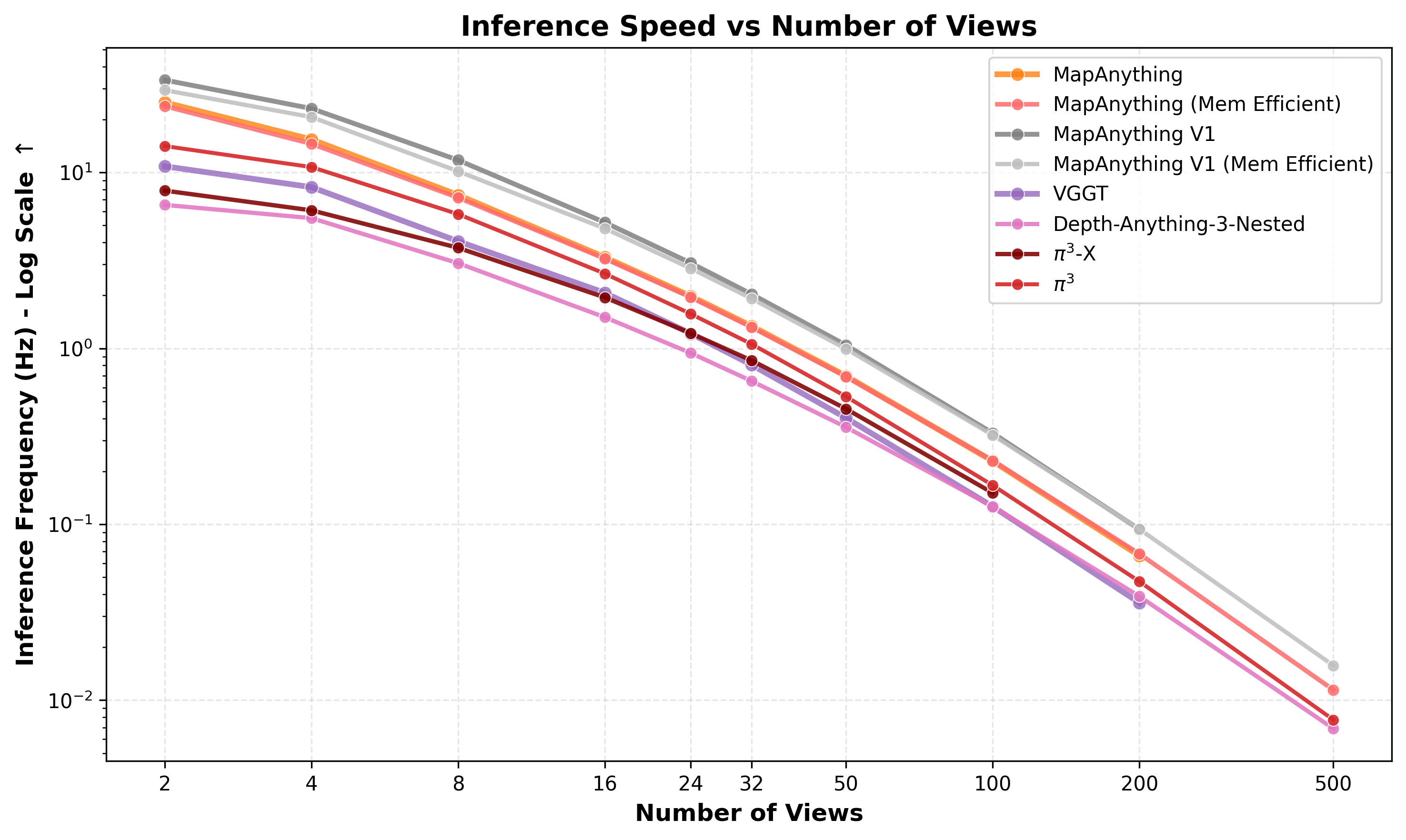

  • Profiling Results
  • Basic Profiling
  • Comparing with External Models
  • Command-Line Arguments
  • Output Files
• COLMAP & GSplat Support
  • Exporting to COLMAP Format
  • Visualizing COLMAP Reconstruction in Rerun
  • Integration with Gaussian Splatting
• Data Processing for Training & Benchmarking
• Training
• Benchmarking
  • Available Benchmarks
• Code License
• Models
  • Hugging Face Hub Models
  • Hugging Face Hub Models (V1 Release)
  • Model Selection Guide
  • Optional Checkpoint Conversion
• Building Blocks for MapAnything
  • Related Research
• Acknowledgments
• Citation

Quick Start

Installation

git clone https://github.com/facebookresearch/map-anything.git
cd map-anything

# Create and activate conda environment
conda create -n mapanything python=3.12 -y
conda activate mapanything

# Optional: Install torch, torchvision & torchaudio specific to your system
# Install MapAnything
pip install -e .

# For all optional dependencies
# This includes external model support (VGGT, DUSt3R, MASt3R, MUSt3R, Pi3-X, DA3, etc.)
# See "Running External Models" section for more details
# See pyproject.toml for more details on installed packages
pip install -e ".[all]"
pre-commit install

Note that we don't pin a specific version of PyTorch or CUDA in our requirements. Please feel free to install PyTorch based on your specific system.

Image-Only Inference

For metric 3D reconstruction from images without additional geometric inputs:

# Optional config for better memory efficiency
import os
os.environ["PYTORCH_CUDA_ALLOC_CONF"] = "expandable_segments:True"

# Required imports
import torch
from mapanything.models import MapAnything
from mapanything.utils.image import load_images

# Get inference device
device = "cuda" if torch.cuda.is_available() else "cpu"

# Init model - This requires internet access or the huggingface hub cache to be pre-downloaded
# For Apache 2.0 license model, use "facebook/map-anything-apache"
model = MapAnything.from_pretrained("facebook/map-anything").to(device)

# Load and preprocess images from a folder or list of paths
images = "path/to/your/images/"  # or ["path/to/img1.jpg", "path/to/img2.jpg", ...]
views = load_images(images)

# Run inference
predictions = model.infer(
    views,                            # Input views
    memory_efficient_inference=True,  # Trades off speed for more views (up to 2000 views on 140 GB). Trade off is negligible - see profiling section
    minibatch_size=None,              # Minibatch size for memory-efficient inference (use 1 for smallest GPU memory consumption). Default is dynamic computation based on available GPU memory.
    use_amp=True,                     # Use mixed precision inference (recommended)
    amp_dtype="bf16",                 # bf16 inference (recommended; falls back to fp16 if bf16 not supported)
    apply_mask=True,                  # Apply masking to dense geometry outputs
    mask_edges=True,                  # Remove edge artifacts by using normals and depth
    apply_confidence_mask=False,      # Filter low-confidence regions
    confidence_percentile=10,         # Remove bottom 10 percentile confidence pixels
    use_multiview_confidence=False,   # Enable multi-view depth consistency based confidence in place of learning-based one
)

# Access results for each view - Complete list of metric outputs
for i, pred in enumerate(predictions):
    # Geometry outputs
    pts3d = pred["pts3d"]                     # 3D points in world coordinates (B, H, W, 3)
    pts3d_cam = pred["pts3d_cam"]             # 3D points in camera coordinates (B, H, W, 3)
    depth_z = pred["depth_z"]                 # Z-depth in camera frame (B, H, W, 1)
    depth_along_ray = pred["depth_along_ray"] # Depth along ray in camera frame (B, H, W, 1)

    # Camera outputs
    ray_directions = pred["ray_directions"]   # Ray directions in camera frame (B, H, W, 3)
    intrinsics = pred["intrinsics"]           # Recovered pinhole camera intrinsics (B, 3, 3)
    camera_poses = pred["camera_poses"]       # OpenCV (+X - Right, +Y - Down, +Z - Forward) cam2world poses in world frame (B, 4, 4)
    cam_trans = pred["cam_trans"]             # OpenCV (+X - Right, +Y - Down, +Z - Forward) cam2world translation in world frame (B, 3)
    cam_quats = pred["cam_quats"]             # OpenCV (+X - Right, +Y - Down, +Z - Forward) cam2world quaternion in world frame (B, 4)

    # Quality and masking
    confidence = pred["conf"]                 # Per-pixel confidence scores (B, H, W)
    mask = pred["mask"]                       # Combined validity mask (B, H, W, 1)
    non_ambiguous_mask = pred["non_ambiguous_mask"]                # Non-ambiguous regions (B, H, W)
    non_ambiguous_mask_logits = pred["non_ambiguous_mask_logits"]  # Mask logits (B, H, W)

    # Scaling
    metric_scaling_factor = pred["metric_scaling_factor"]  # Applied metric scaling (B,)

    # Original input
    img_no_norm = pred["img_no_norm"]         # Denormalized input images for visualization (B, H, W, 3)

Multi-Modal Inference

MapAnything supports flexible combinations of geometric inputs for enhanced metric reconstruction. Steps to try it out:

Initialize the model:

# Optional config for better memory efficiency
import os
os.environ["PYTORCH_CUDA_ALLOC_CONF"] = "expandable_segments:True"

# Required imports
import torch
from mapanything.models import MapAnything

# Get inference device
device = "cuda" if torch.cuda.is_available() else "cpu"

# Init model - This requires internet access or the huggingface hub cache to be pre-downloaded
# For Apache 2.0 license model, use "facebook/map-anything-apache"
model = MapAnything.from_pretrained("facebook/map-anything").to(device)

Initialize the inputs:

# MapAnything is extremely flexible and supports any combination of inputs.
views_example = [
    {
        # View 0: Images + Calibration
        "img": image, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics, # (3, 3)
    },
    {
        # View 1: Images + Calibration + Depth
        "img": image, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics, # (3, 3)
        "depth_z": depth_z, # (H, W)
        "is_metric_scale": torch.tensor([True], device=device), # (1,)
    },
    {
        # View 2: Images + Calibration + Depth + Pose
        "img": image, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics, # (3, 3)
        "depth_z": depth_z, # (H, W)
        "camera_poses": camera_poses, # (4, 4) or tuple of (quats, trans) in OpenCV cam2world convention
        "is_metric_scale": torch.tensor([True], device=device), # (1,)
    },
    ...
]

Note that MapAnything expects the input camera poses to follow the OpenCV (+X - Right, +Y - Down, +Z - Forward) cam2world convention.

# Example 1: Images + Camera Intrinsics
views_example = [
    {
        "img": image_tensor,  # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics_tensor,  # (3, 3)
    },
    ...
]

# Example 2: Images + Intrinsics + Depth
views_example = [
    {
        "img": image_tensor, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics_tensor, # (3, 3)
        "depth_z": depth_tensor,  # (H, W)
        "is_metric_scale": torch.tensor([True]), # (1,)
    },
    ...
]

# Example 3: Images + Intrinsics + Camera Poses
views_example = [
    {
        "img": image_tensor, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics_tensor, # (3, 3)
        "camera_poses": pose_matrices,  # (4, 4) or tuple of (quats, trans) in OpenCV cam2world convention
        "is_metric_scale": torch.tensor([True]), # (1,)
    },
    ...
]

# Example 4: Images + Ray Directions + Depth (alternative to intrinsics)
views_example = [
    {
        "img": image_tensor, # (H, W, 3) - [0, 255]
        "ray_directions": ray_dirs_tensor,  # (H, W, 3)
        "depth_z": depth_tensor, # (H, W)
    }
    ...
]

# Example 5: Full Multi-Modal (Images + Intrinsics + Depth + Poses)
views_example = [
    {
        "img": image_tensor, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics_tensor, # (3, 3)
        "depth_z": depth_tensor, # (H, W)
        "camera_poses": pose_matrices, # (4, 4) or tuple of (quats, trans) in OpenCV cam2world convention
        "is_metric_scale": torch.tensor([True]), # (1,)
    }
    ...
]

# Example 6: Adaptive Mixed Inputs
views_example = [
    {
        # View 0: Images + Pose
        "img": images, # (H, W, 3) - [0, 255]
        "camera_poses": camera_poses, # (4, 4) or tuple of (quats, trans) in OpenCV cam2world convention
    },
    {
        # View 1: Images + Calibration
        "img": images, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics, # (3, 3)
    },
    {
        # View 2: Images + Calibration + Depth
        "img": images, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics, # (3, 3)
        "depth_z": depth_z, # (H, W)
        "is_metric_scale": torch.tensor([True], device=device), # (1,)
    },
    {
        # View 3: Images + Calibration + Depth + Pose
        "img": images, # (H, W, 3) - [0, 255]
        "intrinsics": intrinsics, # (3, 3)
        "depth_z": depth_z, # (H, W)
        "camera_poses": camera_poses, # (4, 4) or tuple of (quats, trans) in OpenCV cam2world convention
        "is_metric_scale": torch.tensor([True], device=device), # (1,)
    },
    ...
]

Run model inference:

from mapanything.utils.image import preprocess_inputs

# Preprocess inputs to the expected format
processed_views = preprocess_inputs(views_example)

# Run inference with any combination of inputs
predictions = model.infer(
    processed_views,                  # Any combination of input views
    memory_efficient_inference=True, # Trades off speed for more views (up to 2000 views on 140 GB). Trade off is negligible - see profiling section
    minibatch_size=None,              # Minibatch size for memory-efficient inference (use 1 for smallest GPU memory consumption). Default is dynamic computation based on available GPU memory.
    use_amp=True,                     # Use mixed precision inference (recommended)
    amp_dtype="bf16",                 # bf16 inference (recommended; falls back to fp16 if bf16 not supported)
    apply_mask=True,                  # Apply masking to dense geometry outputs
    mask_edges=True,                  # Remove edge artifacts by using normals and depth
    apply_confidence_mask=False,      # Filter low-confidence regions
    confidence_percentile=10,         # Remove bottom 10 percentile confidence pixels
    use_multiview_confidence=False,   # Enable multi-view depth consistency based confidence in place of learning-based one
    # Control which inputs to use/ignore
    # By default, all inputs are used when provided
    # If is_metric_scale flag is not provided, all inputs are assumed to be in metric scale
    ignore_calibration_inputs=False,
    ignore_depth_inputs=False,
    ignore_pose_inputs=False,
    ignore_depth_scale_inputs=False,
    ignore_pose_scale_inputs=False,
)

# Access results for each view - Complete list of metric outputs
# Outputs are the same as above (image-only input case), but with additional inputs used

Input requirements for model.infer:

• img: RGB images normalized according to data_norm_type
• data_norm_type: Normalization type (must match model's encoder requirements)

Optional geometric inputs supported by model.infer:

• intrinsics OR ray_directions: Camera calibration (cannot provide both since they are redundant)
• depth_z: Z-depth maps (requires calibration info)
• camera_poses: OpenCV (+X - Right, +Y - Down, +Z - Forward) cam2world poses as 4×4 matrices or (quaternions, translations)
• is_metric_scale: Whether inputs are in metric scale

Key constraints for model.infer:

• If depth_z is provided, must also provide intrinsics or ray_directions
• If any view has camera_poses, the first view (reference) must also have them
• Cannot provide both intrinsics and ray_directions simultaneously (they are redundant)

The above constraints are enforced in the inference API. However, if desired, the underlying model.forward can support any arbitrary combination of inputs (a total of 64 configurations; without counting per view flexibility).

Running External Models

The MapAnything codebase is modular — different 3D reconstruction models can be used interchangeably through a unified model factory interface. All model wrappers produce outputs in a unified format following MapAnything conventions (pts3d, pts3d_cam, ray_directions, depth_along_ray, cam_trans, cam_quats, conf, etc.). This enables fair comparison, benchmarking, and easy experimentation across methods.

Available Models

Installation {#external-model-installation}

Install optional dependencies for external models:

# Install specific external model dependencies
pip install -e ".[dust3r]"           # DUSt3R
pip install -e ".[mast3r]"           # MASt3R
pip install -e ".[pi3]"              # π³-X (note: π³ base works without this)
pip install -e ".[pow3r]"            # Pow3R
pip install -e ".[anycalib]"         # AnyCalib
pip install -e ".[must3r]"           # MUSt3R
pip install -e ".[depth-anything-3]" # Depth Anything 3

# Or install all external model dependencies
pip install -e ".[all]"

Quick Start Example {#external-model-quick-start}

Example 1: Using init_model_from_config (recommended)

from mapanything.models import init_model_from_config

# Initialize model by name - handles Hydra config composition automatically
# Options are based on configs available in configs/model
# The model is returned on the specified device
model = init_model_from_config("vggt", device="cuda")

# Other examples:
# model = init_model_from_config("pi3x", device="cuda")
# model = init_model_from_config("da3_nested", device="cuda")
# Note: For MUSt3R, the values in configs/machine/default.yaml need to be populated to enable checkpoint loading
# model = init_model_from_config("must3r", device="cuda")

Example 2: Using model_factory directly

from mapanything.models import model_factory, get_available_models

# List all available models
print(get_available_models())
# ['mapanything', 'mapanything_ablations', 'modular_dust3r', 'anycalib',
#  'da3', 'dust3r', 'mast3r', 'moge', 'must3r', 'pi3', 'pi3x', 'pow3r',
#  'pow3r_ba', 'vggt']

# Initialize external model
# Requires passing in additional model config arguments as kwargs
# model = model_factory("model_name", **model_config_kwargs)
model = model_factory("vggt", name="vggt", torch_hub_force_reload=False)
model = model.to("cuda")

Running Inference

All model wrappers follow the same forward() interface. The model expects a list of view dictionaries as input and returns a list of prediction dictionaries:

import torch
from mapanything.utils.image import load_images

# Load and preprocess images from a folder
# This handles resizing and normalization based on model requirements
views = load_images(
    folder_or_list="path/to/images",  # Folder path or list of image paths
    resolution_set=518,               # Model-specific resolution (see table above)
    norm_type="dinov2",               # Model-specific normalization (see table above)
    patch_size=14,
)

# Run inference
model.eval()
with torch.no_grad():
    with torch.autocast("cuda"):
        predictions = model(views)

# predictions is a list of dicts, one per input view
# See the Unified Output Format section below for more details

Each input view dictionary must contain at minimum an img tensor of shape (B, 3, H, W) with the appropriate normalization applied. The load_images utility handles this preprocessing automatically. For more advanced inference patterns including loss computation and device handling, see the loss_of_one_batch_multi_view function in mapanything/utils/inference.py.

Unified Output Format

All model wrappers produce outputs in a consistent format:

This unified output format allows:

• Fair comparison between methods
• Easy swapping of models for experimentation
• Consistent downstream processing pipelines

Notes on Input Requirements

Different models have different input requirements:

Resolution - Longest Side:

• 518px: MapAnything, VGGT, MoGe, Pi3, Pi3X
• 512px: DUSt3R, MASt3R, MUSt3R, Pow3R
• 504px: Depth Anything 3

Data Normalization (data_norm_type):

• dinov2: MapAnything, Depth Anything 3
• identity: VGGT, MoGe, Pi3, Pi3X
• dust3r: DUSt3R, MASt3R, MUSt3R, Pow3R

For training and fine-tuning external models, see the Training README for detailed instructions.

Interactive Demos

We provide multiple interactive demos to try out MapAnything!

Online Demo

Try our online demo without installation: 🤗 Hugging Face Demo

Local Gradio Demo

We provide a script to launch our Gradio app. The interface and GUI mirrors our online demo where you can upload images/videos, run reconstruction and interactively view them. You can launch this using:

# Install requirements for the app
pip install -e ".[gradio]"

# Launch app locally
python scripts/gradio_app.py

Rerun Demo

We provide a demo script for interactive 3D visualization of metric reconstruction results using Rerun.

# Terminal 1: Start the Rerun server
rerun --serve --port 2004 --web-viewer-port 2006

# Terminal 2: Run MapAnything demo
python scripts/demo_images_only_inference.py \
    --image_folder /path/to/your/images \
    --viz \
    --save_glb \
    --output_path /path/to/output.glb

# Terminal 3 or Local Machine: Open web viewer at http://127.0.0.1:2006 (You might need to port forward if using a remote server)

Additional options:

• --apache: Use the Apache 2.0 licensed model
• --video_viz_for_rerun: Enable video-style visualization with time indexing
• --log_only_imgs_for_rerun_cams: Log only images for Rerun cameras (skip depth/mask)

Optionally, if rerun is installed locally, local rerun viewer can be spawned using: rerun --connect rerun+http://127.0.0.1:2004/proxy.

Demo Inference on COLMAP outputs

We provide a demo script to run MapAnything inference on COLMAP outputs. The script runs MapAnything in MVS mode by default (using COLMAP calibration and poses as input). Use the --help flag for more info.

# Terminal 1: Start the Rerun server
rerun --serve --port 2004 --web-viewer-port 2006

# Terminal 2: Run MapAnything inference on COLMAP output folder
python scripts/demo_inference_on_colmap_outputs.py \
    --colmap_path /path/to/your/colmap_output \
    --viz

# Terminal 3 or Local Machine: Open web viewer at http://127.0.0.1:2006 (You might need to port forward if using a remote server)

Additional options:

• --apache: Use the Apache 2.0 licensed model
• --stride N: Load every Nth image (default: 1)
• --ext .bin/.txt: COLMAP file extension (default: .bin)
• --ignore_calibration_inputs: Ignore COLMAP calibration (use only images and poses)
• --ignore_pose_inputs: Ignore COLMAP poses (use only images and calibration)
• --save_colmap: Export results in COLMAP format
• --save_glb: Save reconstruction as GLB file
• --output_directory: Output directory for COLMAP or GLB exports (default: colmap_mapanything_output)
• --verbose: Enable verbose loading output

Optionally, if rerun is installed locally, local rerun viewer can be spawned using: rerun --connect rerun+http://127.0.0.1:2004/proxy.

Profiling

Profile GPU memory usage and inference speed of MapAnything across different view counts. The profiling script supports comparison with external models and outputs both JSON results and visualizations.

Profiling Results

MapAnything achieves the best speed and memory profile compared to existing methods, enabling efficient inference across a wide range of view counts.

Peak GPU Memory vs Number of Views	Inference Speed vs Number of Views

Note on Memory Efficient Mode: MapAnything (Mem Efficient) in the plots refers to using memory_efficient_inference=True with mini batch size 1 in the .infer() and .forward() calls. This mode trades off speed for reduced memory consumption, enabling inference on a larger number of views (up to 2000 views on 140 GB). As seen in the plots, the speed trade off is negligible.

Basic Profiling

# Profile MapAnything (default and memory-efficient modes)
python scripts/profile_memory_runtime.py \
    --output_dir /path/to/results

# Profile with a specific checkpoint
python scripts/profile_memory_runtime.py \
    --output_dir /path/to/results \
    --mapanything_checkpoint /path/to/checkpoint.pth

# Use Apache 2.0 licensed model
python scripts/profile_memory_runtime.py \
    --output_dir /path/to/results \
    --apache

Comparing with External Models

External models are loaded using their Hydra config files from configs/model/<model_name>.yaml. Make sure the required dependencies are installed (see Running External Models).

# Compare MapAnything with external models
python scripts/profile_memory_runtime.py \
    --output_dir /path/to/results \
    --external_models vggt pi3x must3r

# Custom view counts
python scripts/profile_memory_runtime.py \
    --output_dir /path/to/results \
    --num_views 2 4 8 16 32 64

Available external models: vggt, pi3, pi3x, dust3r, mast3r, must3r, pow3r, pow3r_ba, da3, da3_nested, moge_1, moge_2

Command-Line Arguments

Output Files

The script generates the following outputs in the specified directory:

• profiling_results.json: Raw profiling data with memory and timing statistics
• profiling_memory.png: Plot of peak GPU memory usage vs number of views
• profiling_speed.png: Plot of inference frequency (Hz) vs number of views

COLMAP & GSplat Support

MapAnything predictions can be exported to COLMAP format for use with Gaussian Splatting and other downstream applications.

Exporting to COLMAP Format

MapAnything's predictions can directly be converted to COLMAP format by using:

# Install requirements for this specific demo
pip install -e ".[colmap]"

# Export MapAnything predictions to COLMAP format
python scripts/demo_colmap.py --images_dir=/YOUR/IMAGES_DIR/ --output_dir=/YOUR/OUTPUT_DIR/

# With custom voxel fraction (default: 0.01 = 1% of IQR-based scene extent)
python scripts/demo_colmap.py --images_dir=/YOUR/IMAGES_DIR/ --output_dir=/YOUR/OUTPUT_DIR/
